arkanoid::Entity Class Reference

An Entity represents an "object" (like Player, Ball, Block, ...) in the game World. More...

#include <entity.h>

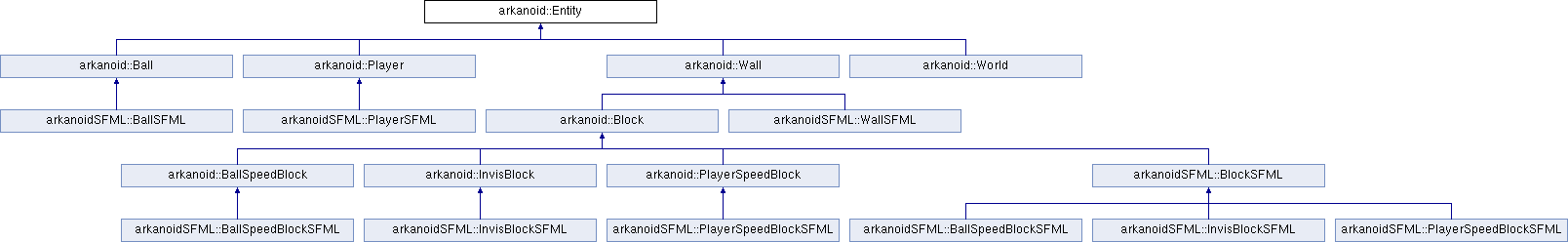

Inheritance diagram for arkanoid::Entity:

Public Member Functions
	Entity ()
	Entity (double x, double y, pair< double, double > newSize=make_pair(1.0, 1.0))
virtual	~Entity ()
virtual void	update ()=0
virtual void	draw () const =0
Vector2D	getPosition () const
void	setPosition (double x, double y)
void	setPosition (const Vector2D &vector)
void	setSize (pair< double, double > newSize)
pair< double, double >	getSize () const
bool	collidesWith (const Entity &other) const

Protected Attributes
Vector2D	position
	The current position of the Entity (in the 9x7 grid).
pair< double, double >	size
	The size (width and height respectively) of the Entity.

Detailed Description

An Entity represents an "object" (like Player, Ball, Block, ...) in the game World.

Definition at line 15 of file entity.h.

Constructor & Destructor Documentation

Entity() [1/2]

arkanoid::Entity::Entity

(

)

Default Constructor.

Initialise the Entity at origin ([0, 0]) in the World.

Definition at line 13 of file entity.cpp.

Entity() [2/2]

arkanoid::Entity::Entity	(	double	x,
		double	y,
		pair< double, double >	newSize = make_pair(1.0, 1.0)
	)

Constructor.

Initialise the Entity at a specific position in the World.

Parameters

x	The x position of the Entity.
y	The y position of the Entity.
newSize	(optional) The size (width and height respectively) of the Entity.

Definition at line 15 of file entity.cpp.

~Entity()

virtual arkanoid::Entity::~Entity ( )

inlinevirtual

Destructor.

Definition at line 43 of file entity.h.

Member Function Documentation

collidesWith()

bool arkanoid::Entity::collidesWith

(

const Entity &

other

)

const

Checks if this Entity is intersecting with another Entity.

Returns

True if intersecting, otherwise false.

Definition at line 38 of file entity.cpp.

draw()

virtual void arkanoid::Entity::draw ( ) const

pure virtual

Draw the Entity.

Implemented in arkanoid::Ball, arkanoid::Player, arkanoidSFML::PlayerSFML, arkanoidSFML::BallSFML, arkanoidSFML::BlockSFML, arkanoidSFML::WallSFML, arkanoid::BallSpeedBlock, arkanoid::PlayerSpeedBlock, arkanoid::World, arkanoid::Block, arkanoid::Wall, arkanoid::InvisBlock, arkanoidSFML::BallSpeedBlockSFML, arkanoidSFML::PlayerSpeedBlockSFML, and arkanoidSFML::InvisBlockSFML.

getPosition()

Vector2D arkanoid::Entity::getPosition

(

)

const

Get the current position of the Entity.

Returns

The current position of the Entity (in a Vector2D).

Definition at line 17 of file entity.cpp.

getSize()

pair< double, double > arkanoid::Entity::getSize

(

)

const

Get the size of the Entity.

Returns

The size of the Entity.

Definition at line 34 of file entity.cpp.

setPosition() [1/2]

void arkanoid::Entity::setPosition	(	double	x,
		double	y
	)

Set the current position of the Entity.

Parameters

x	The nex 'x' component of the Entity.
y	The nex 'y' component of the Entity.

Definition at line 21 of file entity.cpp.

setPosition() [2/2]

void arkanoid::Entity::setPosition

(

const Vector2D &

vector

)

Set the current position of the Entity.

Parameters

vector

The vector who this Entity will be equal to.

Definition at line 26 of file entity.cpp.

setSize()

void arkanoid::Entity::setSize

(

pair< double, double >

newSize

)

Set the size of the Entity.

Parameters

newSize

The new size of the Entity.

Definition at line 30 of file entity.cpp.

update()

virtual void arkanoid::Entity::update ( )

pure virtual

Based on what Entity, the Entity will update itself.

Implemented in arkanoid::Ball, arkanoid::Player, arkanoidSFML::PlayerSFML, arkanoidSFML::BallSFML, arkanoidSFML::BlockSFML, arkanoidSFML::WallSFML, arkanoid::BallSpeedBlock, arkanoid::PlayerSpeedBlock, arkanoid::World, arkanoid::Block, arkanoid::Wall, arkanoid::InvisBlock, arkanoidSFML::BallSpeedBlockSFML, arkanoidSFML::PlayerSpeedBlockSFML, and arkanoidSFML::InvisBlockSFML.

---

The documentation for this class was generated from the following files:

• src/arkanoid/logic/entity/entity.h
• src/arkanoid/logic/entity/entity.cpp
